Adjustable aluminum alloy louvers are a common window treatment material, offering a wide range of functions and benefits. The following is a detailed overview:

Materials and Structure

• Material: Primarily constructed from rust-resistant aluminum alloy, featuring characteristics such as lightweight design, durability, and corrosion resistance. It is highly resistant to deformation and offers a long service life.
• Structure: The frames and slats typically feature a double-layer hollow construction. This design creates an insulating layer that effectively maintains indoor temperatures and reduces noise levels. Options to incorporate dust screens, insect screens, or rodent-proof mesh are also available.

Adjustment Functions

• Angle Adjustment: The slats offer an adjustable rotation range of 0° to 105°, allowing for flexible positioning. When set to a 90° angle, maximum ventilation is achieved; at angles between 15° and 25°, the slats effectively prevent outsiders from peeking in; and when fully closed, they provide protection against heavy rain.

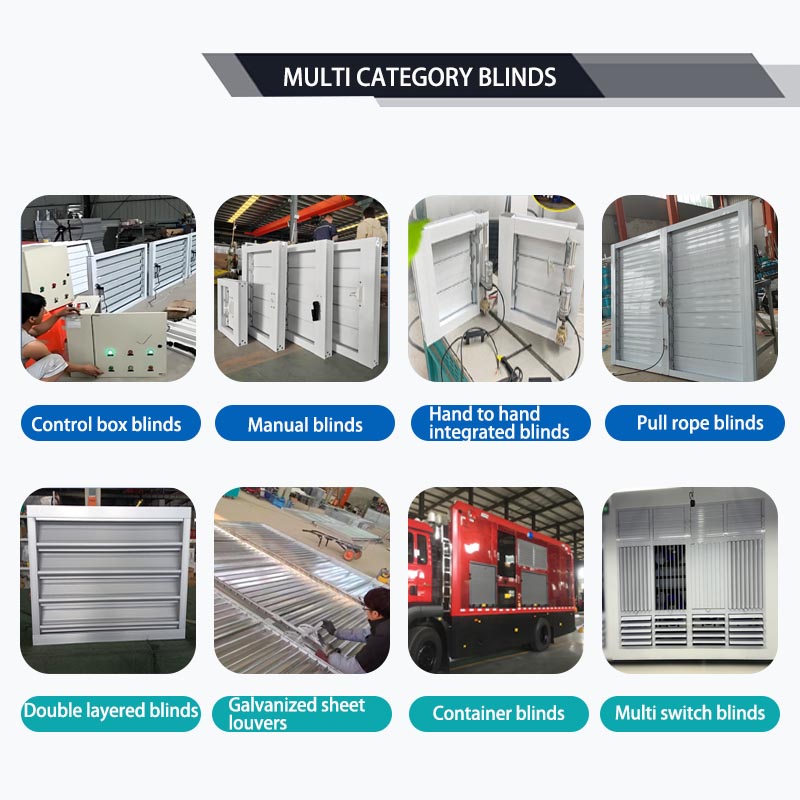

• Control Methods: Operation can be manual—controlled via a rotary knob or pull cord—or motorized. Motorized systems allow for automated opening/closing, remote control operation, and integration with fire safety linkage systems.

Performance Features

• Sound Insulation & Thermal Retention: The slats and fixed brackets feature sealed interlocking grooves and weather strips. When fully closed, the double-layer hollow structure effectively blocks external noise while simultaneously maintaining indoor temperatures, thereby conserving energy.
• Ventilation & Lighting: By adjusting the angle of the slats, users can flexibly control airflow and natural light levels to meet diverse ventilation and illumination requirements. When adjusted to 90°, the slats provide the widest possible field of view; when adjusted to 105°, they utilize light refraction to enhance overall indoor brightness.
• Rain & Dust Protection: When the slats are angled between 10° and 45°, rainwater is prevented from drifting indoors. When fully closed, the system offers excellent sealing properties, effectively blocking wind and dust.
• Security & Durability: The aluminum alloy material provides robust anti-theft and impact-resistant capabilities. It exhibits strong resistance to oxidation and corrosion, features an aesthetically pleasing structural design, and is both easy to install and simple to clean.

Dimensions and Specifications

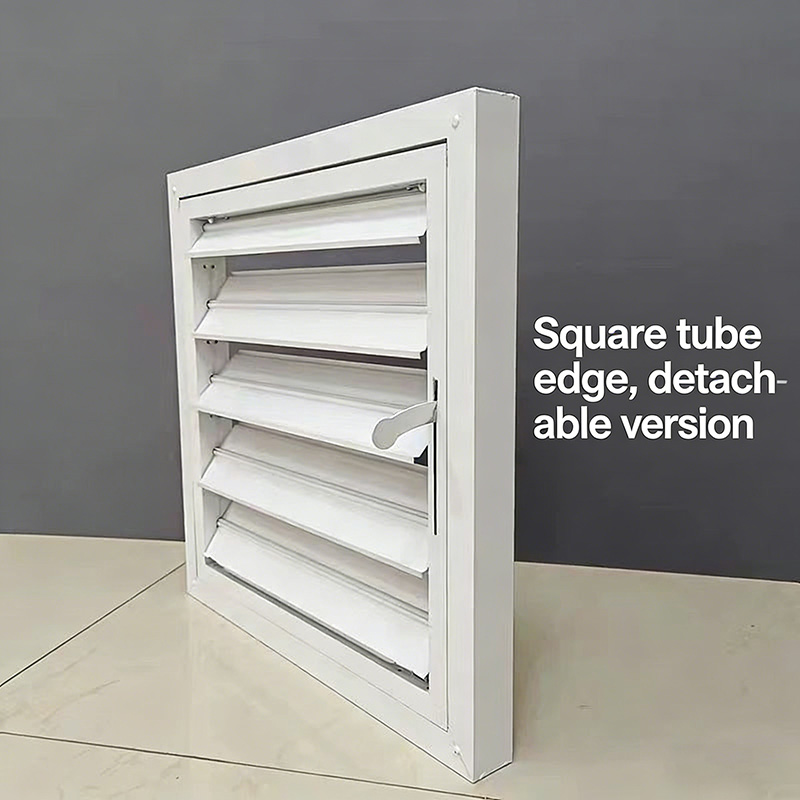

• Frame and Louver Specifications: The frame typically consists of 60x60mm square tubing with an 80mm visible face. The louvers are generally 13cm or 10cm hollow profiles; however, custom profiles can also be fabricated to meet specific requirements.
• Installation Dimensions: Dimensions are fully customizable. For outdoor installations, precise measurements of the structural opening are required; for larger window openings, the unit can be manufactured in modular sections.

Aesthetic Appeal

Aluminum alloy louvers feature a clean, minimalist aesthetic. Users can select from a variety of colors and styles to suit their personal preferences; common color choices include gray, white, and black.
